• Concept

    Sand Bags can be filled with in-situ soil and banked up the river or coast to prevent erosion. The bags are able to hold soil firmly, and can be vegetated to create a natural green appearance and habitat.
  • Application

    Ditch, stream bank, ecological pond and other waterfront access areas.
  • Characteristics

    1. Making use of in-situ soil as filling material.
    2. A cost-efficient method.
    3. An environment-friendly construction
    4. High permeability.

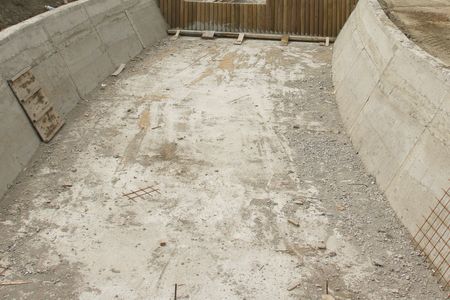

  • Foundation Levelling

    Clean the ground surface of the site. And then establish the necessary level lines.

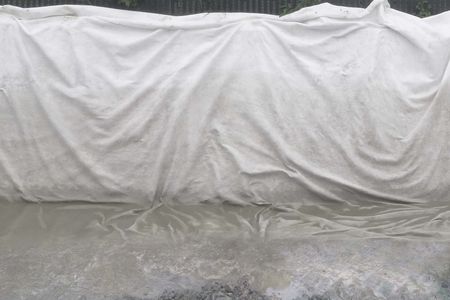

  • Lay Out the geotextile

    Lay the geotextile over the sand bags.

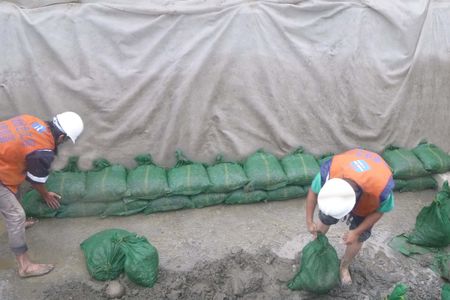

  • Sand Bag Stacking

    Fill sand bags and cross-stack them to the designed height as specified in the design drawing.

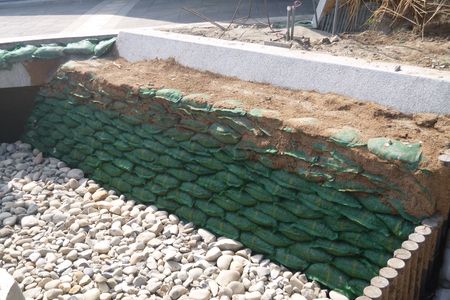

  • Shore Protection of Sand Bags Completed

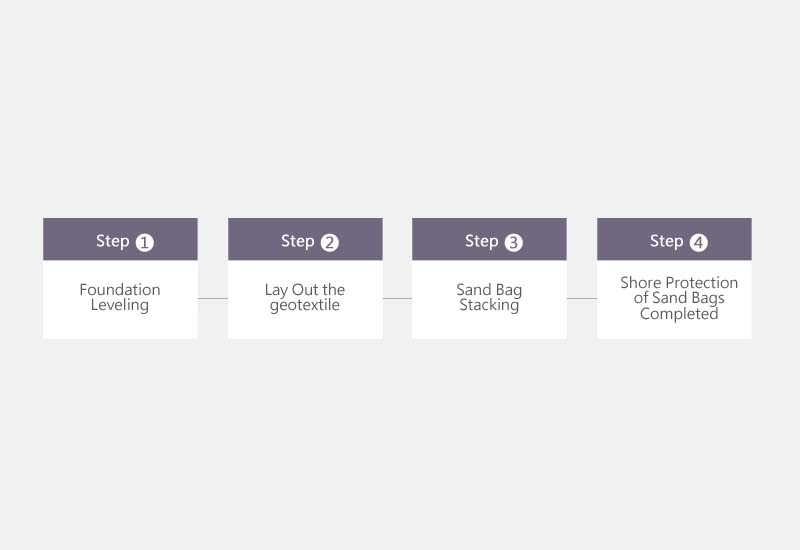

  • Foundation Levelling
  • Lay Out the geotextile
  • Sand Bag Stacking
  • Shore Protection of Sand Bags Completed

Sand BagDemonstrative Case

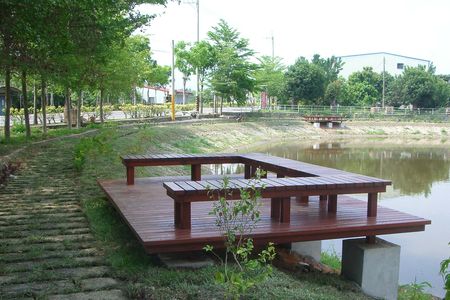

ACEBag™ for Artificial Pond Bank Restoration, Tainan, Taiwan

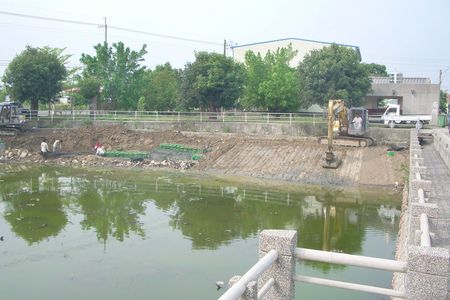

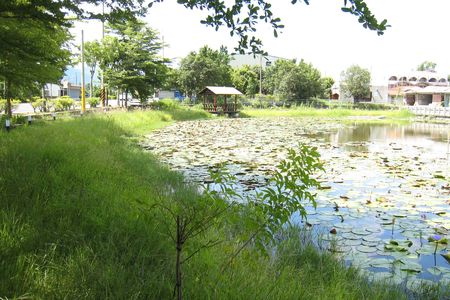

Initially, the pond bank was built with in-situ soil only without any reinforcement. After experiencing several typhoons, the soil at the bank of the Half Moon Pond was washed into the pond and it was all silted up.The pond bank was built with 2 meters high reinforced retaining wall with ACEGrid®, and double layer ACEBag™ were applied on the bank surface to prevent from rain eroding. In-situ soil was filled into the ACEBag™, and was further enhanced with green vegetation by hydroseeding. Decks were built at the side of the pond as recreational facilities for local residents and visitors. The reinforced pond bank has experienced several typhoons afterwards and still stays there firmly covering by vegetation and without any defect.
