Monitoring System

Monitoring SystemEXPLANATION

  • Concept

    Time domain reflectometry (TDR) real-time landslide monitoring system utilizes the position variation and signal intensity of electromagnetic wave via the subsurface coxial cable to identify the landslide depth and sliding displacement; in-place inclinometers (IPI) monitor the deformation of stratum while landslides cause displacement on the inclinometer.
  • Application

    All types of slope.
  • Characteristics

    1. One system can detect 8 holes of landslide movement simultaneously. The monitoring field is wide and deep.
    2. Up-hole monitoring equipment is with low risk, high reliability and durability.


  • Drilling

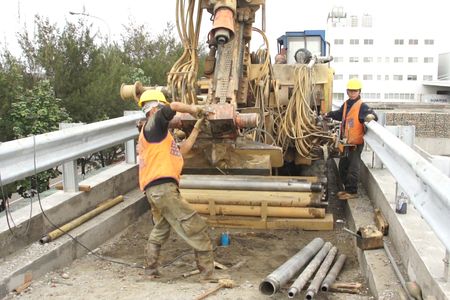

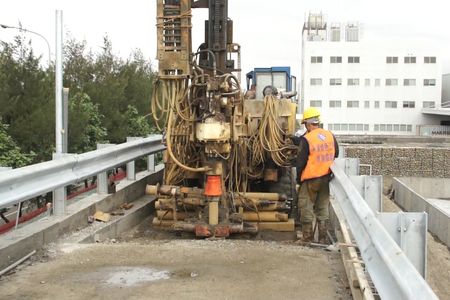

    Drill a hole of 10 cm diameter vertically downward to the designed depth for monitor at the landslide susceptible area.

  • Cable Setting

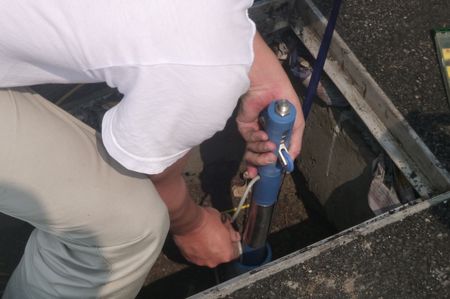

    Let down the monitoring cable and inclinometer vertically in the hole to the proposed depth.

  • Hole Sealing

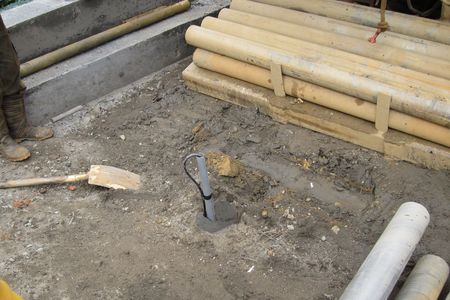

    Pour cement mortar into the hole to seal it.

  • System Installation

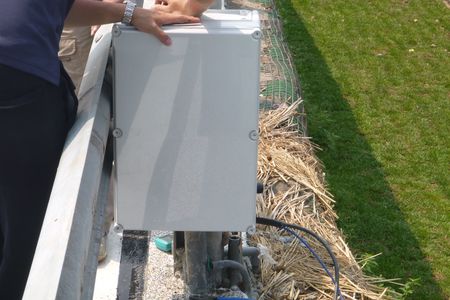

    Proceed with detecting the default value and install the monitoring system.

  • Completion

    Monitoring System is completed.

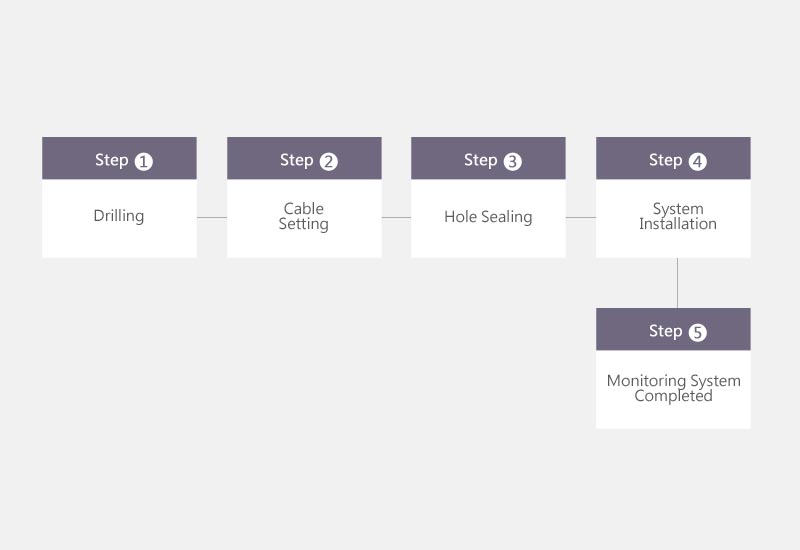

  • Drilling
  • Cable Setting
  • Hole Sealing
  • System Installation
  • Completion
