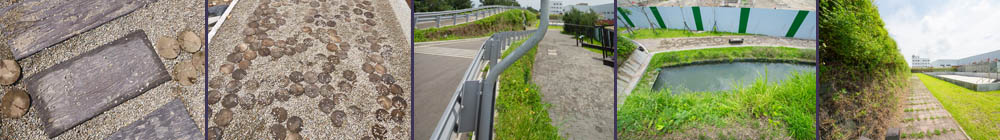

Footpath PavementsEXPLANATION

  • Concept

    This footpath is constructed with porous blocks to achieve an outstanding performance in runoff draining and ground temperature reducing.
  • Application

    Plaza, park, school, sidewalk, bikeway and etc.
  • Characteristics

    1. Improving rainwater infiltration and reducing surface runoff.
    2. Conservation of groundwater, improve underground ecological environment.
    3. Increasing sliding resistance to improve walking condition.
    4. Providng an artistic appearance.

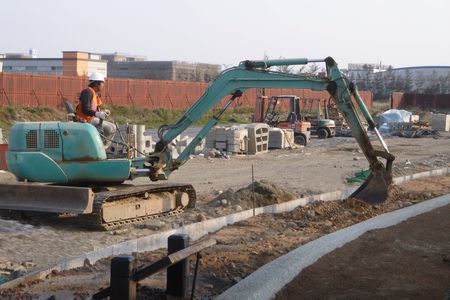

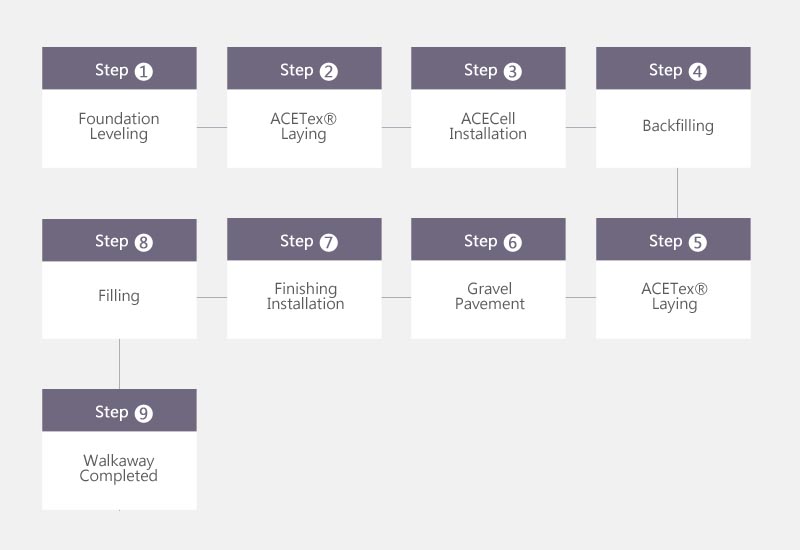

  • Foundation Leveling

    Clean the ground surface of the site. And then establish the necessary level lines.

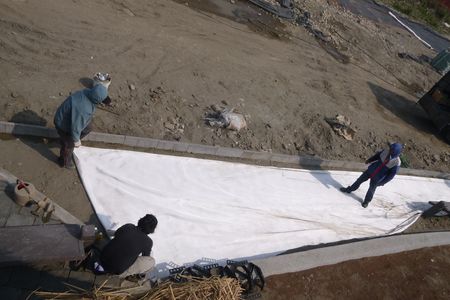

  • ACETex® Laying

    Lay ACETex® at the foundation to separate the foundation and enhance its filtering function.

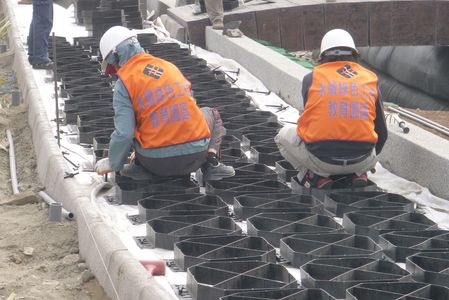

  • ACECell™ Installation

    Install geocells in accordance with the design drawing and fix them with anchor nails.

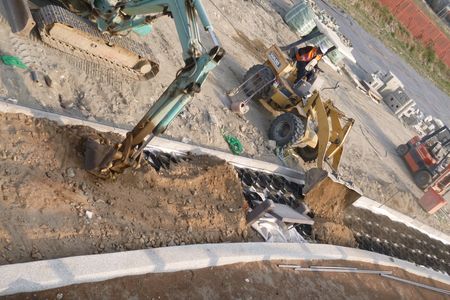

  • Backfilling

    Backfill geocells with soil and compact it to the height of the geocell.

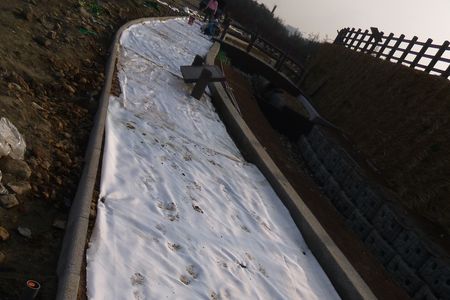

  • ACETex® Laying

    Lay ACETex® on top of the geocell to separate it from the pavement and enhances its filtering function.

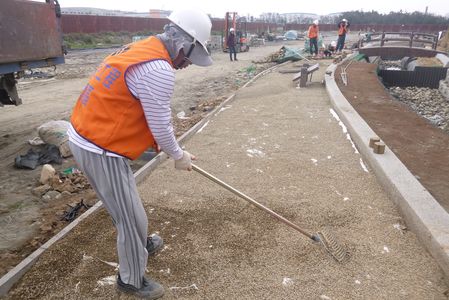

  • Gravel Pavement

    Pave the walkway with fine aggregate to flatten the base.

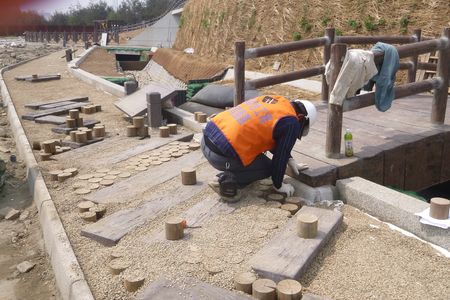

  • Finishing Installation

    Install sweetgum wood block and sleepers according to the design drawing.

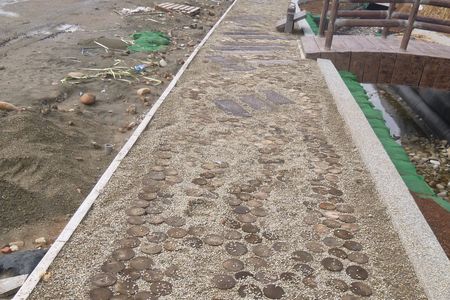

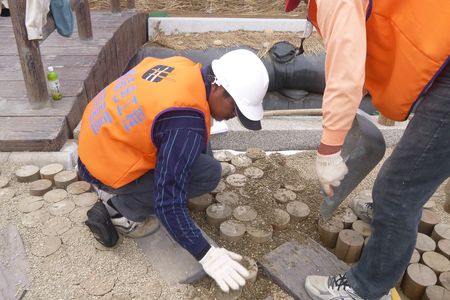

  • Filling

    Pave the surface with fine aggregate to fill the gap.

  • Completion

    Footpath completed.

  • Foundation Leveling
  • ACETex® Laying
  • ACECell™ Installation
  • Backfilling
  • ACETex® Laying
  • Gravel Pavement
  • Finishing Installation
  • Filling
  • Completion

Footpath PavementsDemonstrative Case

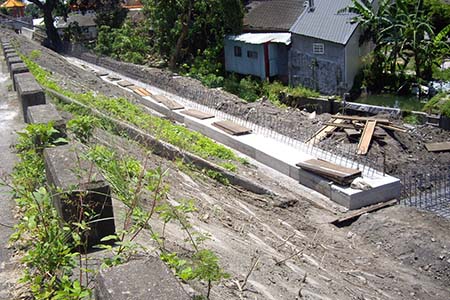

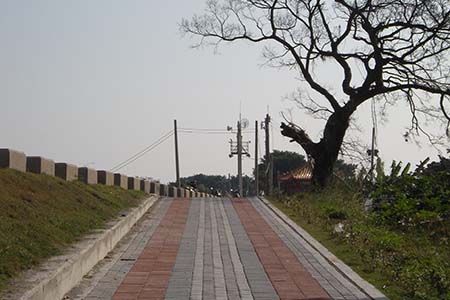

Riverside recreational space and footpath, Yunlin, Taiwan.

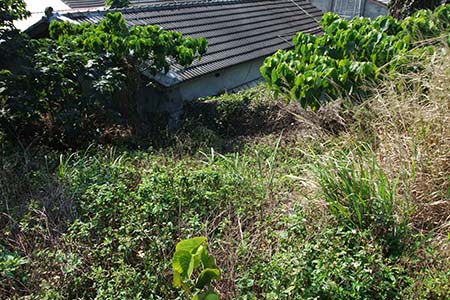

The recreational space near the riverside was filled with weeds. The residence nearby were not able to use that space during leisure time. Considering both the needs of the residence and the environmental factors, precast concrete blocks were used to build the footpath pavements instead of the original concrete material. The space is filled with green vegetation and well used by the residence.
